Сервисная программа Протэк

Features Сервисная программа Протэк

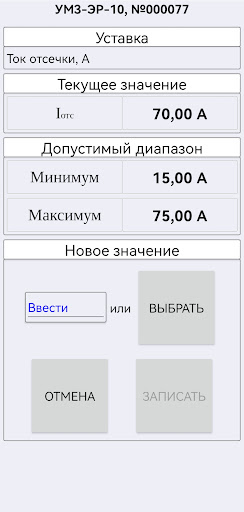

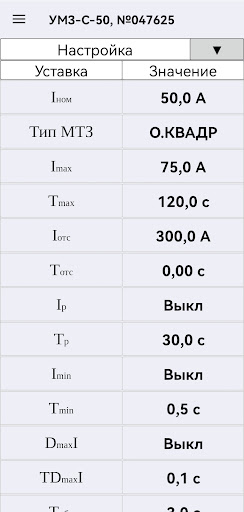

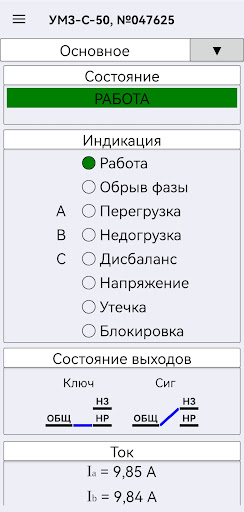

The Protek service program is designed to control, manage and configure monitoring and protection devices for electrical installations, as well as pumping unit controllers and current controllers with a built-in Bluetooth interface, manufactured by Dion LLC and ESA LLC.The service program provides the following features:1) Display of the current status of the device and the electrical installation connected to it.2) View current values ​​of phase currents and voltages.3) Viewing the current values ​​of the total, active, reactive power, power factor consumed by the electrical installation, as well as energy accounting data.4) Control of the device and the electrical installation connected to it (manual blocking, start, start with delay, stop, etc.).5) Setting data logging parameters, starting/stopping logging.6) View and edit device settings.7) Password protection against unauthorized changes to device settings.8) View device logs with the ability to save to files.9) Display of graphs of currents, voltages and powers before an emergency shutdown with the possibility of their arbitrary scaling.
